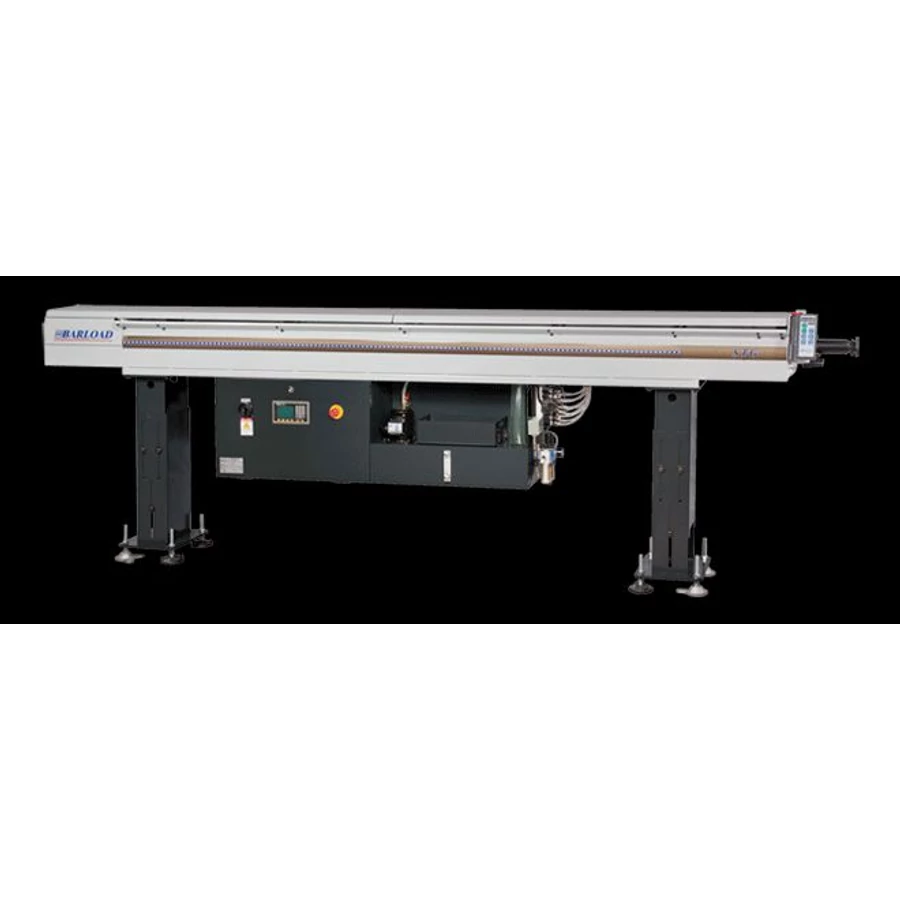

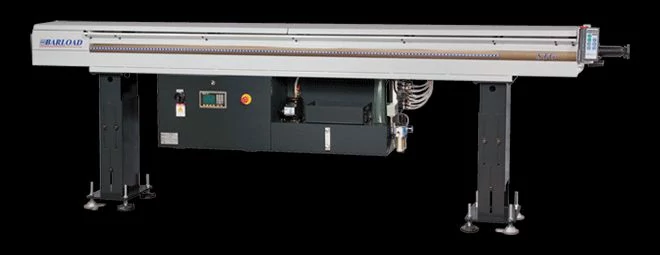

Rúdadagoló STG310 (3,0m, 3-10mm)

Fémipari kiegészítők

Rúdadagoló STG310 (3,0m, 3-10mm) (351515013) - 916.940 Ft

Automatic Bar Feeder Hydraulic Bar Feeder
Features
Self adjusting clamping device. (Patented)
Quick bar change time.
Automatic feeding torque adjustment.
Full size guide channel, easy and quick change.
Oil return and remnant are separated. (Patented)
Servo motor feeding system.
L/R side choice depending on CNC lathe direction.
Steel metal guide channel design. Especially suitable for running sharp material. (Optional)
Mechanical grip device for stable bar clamp in/out from the finger collet.
External LED display. (Optional)

MODEL STG
SPECIFICATIONS 2.5M / 3.0M
GUIDE CHANNEL 11 14 17 19 21 23 25
BAR DIAMETER 3~10 mm 3~13 mm 3~16 mm 3~18 mm 3~20 mm 5~22 mm 5~25 mm
BAR LENGTH 2.5M : 2700mm / 3.0M : 3200mm
BAR CAPACITY 10mm (3/8") 18 pcs
MACHINE WEIGHT 2.5M : 450Kg / 3.0M : 500Kg
AIR PRESSURE 6 kgf / cm² 70psi
TRANSMISSION SERVO MOTOR
POWER SUPPLY 3 x 220V 50 / 60Hz
